Softex CT
Features
- Three-dimensional CT unit that can be incorporated inside the standard type X-ray apparatus
- It can be retrofitted to the X-ray inspection equipment you are using now
- Display as a three-dimensional stereoscopic image such as a defect
*We also accept test photographs of samples, so please feel free to contact us.
Main applications
BGA void position, defect of small electronic parts.

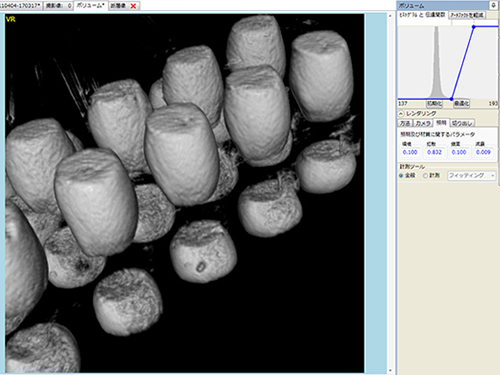

Solder pole

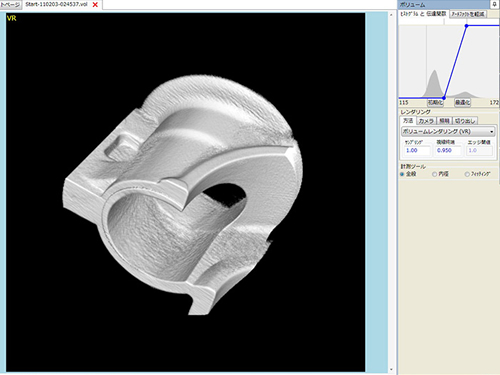

aluminum die cast

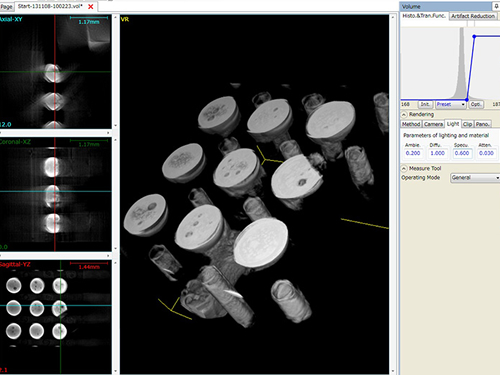

BGA
Constitution
*You can see it by scrolling.
| item | Classification | Contents |
|---|---|---|
| Work rotating part | Rotation mechanism | Adjustable turning axis angle by gonio stage |
| Rotary motor and driver included | ||
| Calibration jig/td> | Removable | |
| Work fixing jig | For board parts, small parts such as capacitors | |
| Personal computer | PC specification | Windows xp sp2;7 IntelCore2Duo;1.86GHZ,2Gib RAM |
| Network equipment | High speed hub for data transfer with inspection equipment PC | |
| Software for CT | Image reconstruction program and image display / rendering | CT reconstruction integrated software TomoShop |
| Rotating section control | Work rotation and image input software (manufactured by SOFTEX) |
specification
*You can see it by scrolling.
| item | Classification | Contents |
|---|---|---|
| Inspection work size | SMT · PCB board | 50×100×2mm |
| Small electronic components (capacitors, etc.) | φ5mm～10mm、h=5mm～20mm | |
| Maximum rotating mechanism weight | Approximately 100g | |
| Image composition time | Image Projection 400frame Image Projection 400 frame Number of integrations 16 |
About 3 minutes 20 seconds |
| Image Projection 900frame Number of integrations 16 |
About 7 minutes 30 seconds | |
| Image Projection 1200frame Number of integrations 16 |
About 11 minutes and 00 second | |
| Additional Conditions: Depends on case when using 1 million pixel X-ray camera | ||
| CT reconstruction / calculation function | XYZ 3 direction | CT reconstruction integrated software by TomoShop rendering function |
| Rotary axis correction function | Correction by TomoShop focusing function | |
| Image reconstruction tact time | Within about 10 seconds | |
