Portable X-ray made by Softex
Features
- Can be transported on site with four-legged assembly legs
- Easy operation to irradiate
- Taking a high-resolution X-ray photograph
- Easy to select irradiation direction
※We need legal qualifications.
Main applications
Inspected objects that can not be moved, inspection objects that can not be accommodated in X-ray dark boxes, cultural property relationships.

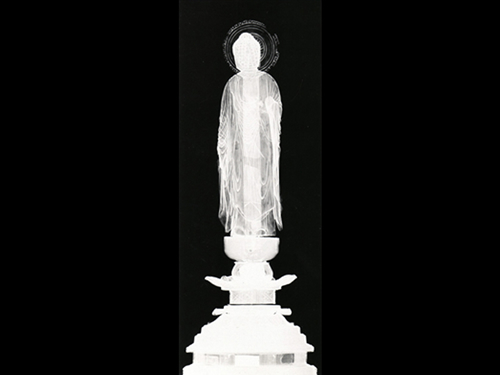

Cultural property
K-4

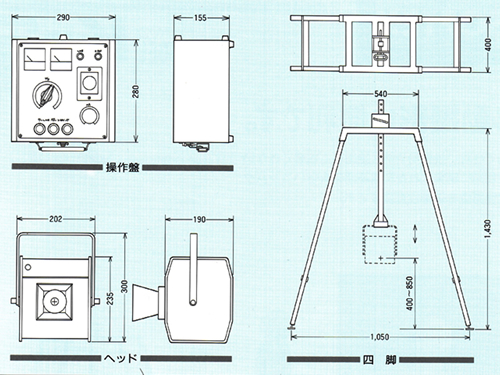

Dimensions
Specification
※スクロールしてご覧いただけます。
| K-4 | |||
| Input | AC100V,50/60Hz | ||
| Maximum voltage | 60kV | ||
| Maximum current | 3mA | ||
| Sensor | - | ||
| Appearance dimension | Controller W290×D280×H155mm |
Head W202×D235×H190mm |
Four legs W202×D235×H190mm |
| Equipment weight | About 10kg | About 17kg | About 6kg |
